CSF Aluminum Radiator - NA Miata (90-97 w. Manual Trans)

The CSF 2862 is an all-aluminum, 2-row replacement radiator for the 1990-1997 Mazda Miata (NA) with a...
Vendor: CSF
SKU: CSF2862
Availability: Available to Order
Product type: Radiators
$399.00
$419.00
$399.00
Save $20.00
10 customers are viewing this product
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering

CSF

CSF Aluminum Radiator - NA Miata (90-97 w. Manual Trans)

$419.00 $399.00
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering
CSF 89 - 97 Mazda Miata Radiator - Radiators - CSF at Garage 56 Engineering

CSF

CSF Aluminum Radiator - NA Miata (90-97 w. Manual Trans)

$419.00 $399.00
Product Details

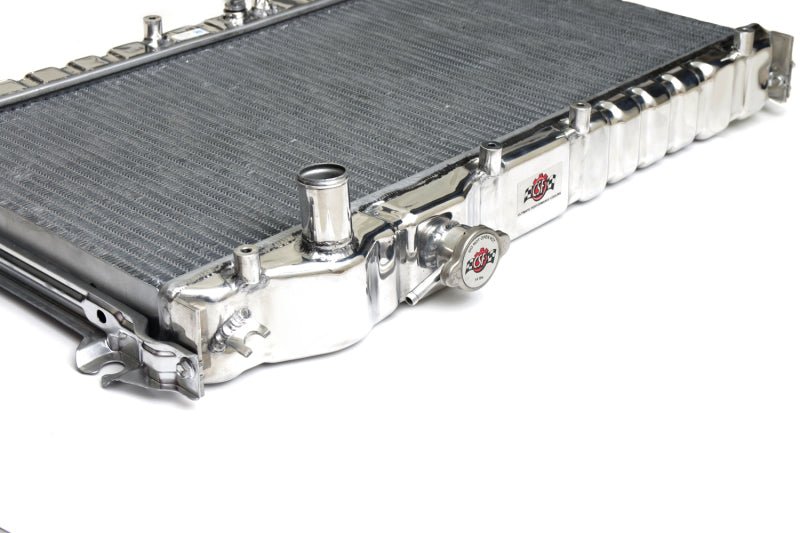

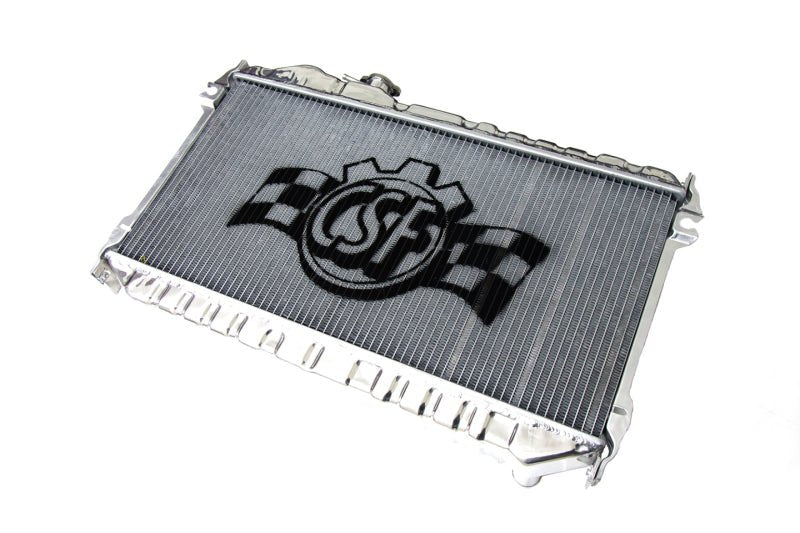

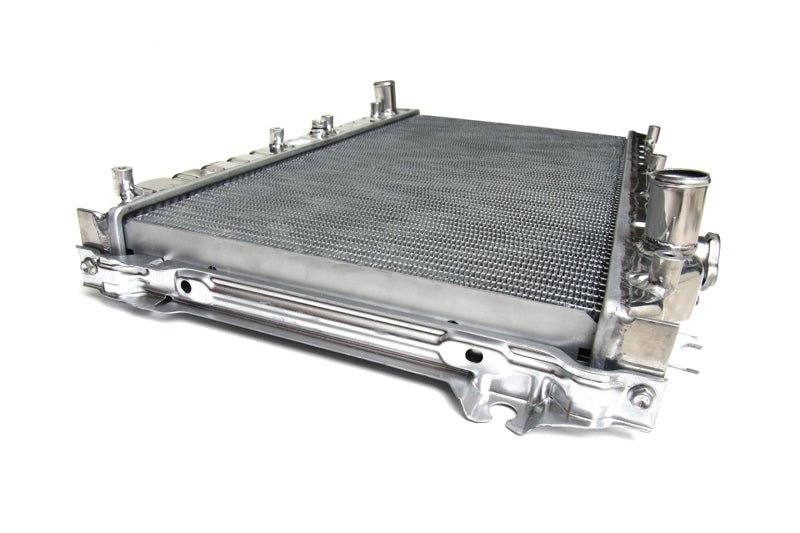

The CSF 2862 is an all-aluminum, 2-row replacement radiator for the 1990-1997 Mazda Miata (NA) with a manual transmission. CSF lists the same radiator for the 1.6L and 1.8L cars and designs it as a drop-in fit that reuses the OEM fan shroud, A/C condenser, mounting brackets and hoses.

  • 2-row, 42 mm dual core using CSF's B-tube design, which CSF says adds about 15% heat-transfer surface over standard oval tubes
  • Multi-louvered fins, 6.5 mm fin height, tested for heat rejection in CSF's wind-tunnel lab
  • CNC-machined quick-connect inlet and outlet matched to the OE connections; OEM or aftermarket hoses can be reused
  • CNC-machined, welded brackets and fittings; all-aluminum race-style drain plug
  • Hand-polished mirror finish
  • CSF 2-year warranty for the original purchaser; replaces Mazda radiator BPE8-15-200

Fitment: 1990-1997 Mazda Miata (NA), 1.6L and 1.8L, manual transmission. CSF lists no automatic-transmission application. Drop-in fit with no modifications; accepts the OEM fan shroud, A/C condenser and mounting brackets.

Part number: CSF 2862

This Part Fits:

Year Make Model Submodel
1990-1997 Mazda Miata Manual Transmission
