H&R TRAK+ 5mm DRS Wheel Spacers (Pair) - NA/NB Miata (90-05)

H&R TRAK+ DRS wheel spacers, 5 mm thick, for the 1990-1997 Mazda Miata (NA) and 1999-2005 Miata...
Vendor: H&R
SKU: HRS10245410
Availability: Available to Order
Product type: Wheel Spacers & Adapters
$89.96
$99.95
$89.96
Save $9.99
10 customers are viewing this product
H&R Trak+ 5mm DRS Wheel Adapter – 4x100 Bolt Pattern, 54.1mm Center Bore, 12x1.5 Stud Thread - Wheel Spacers & Adapters - H&R at Garage 56 Engineering

H&R

H&R TRAK+ 5mm DRS Wheel Spacers (Pair) - NA/NB Miata (90-05)

$99.95 $89.96
H&R Trak+ 5mm DRS Wheel Adapter – 4x100 Bolt Pattern, 54.1mm Center Bore, 12x1.5 Stud Thread - Wheel Spacers & Adapters - H&R at Garage 56 Engineering
H&R Trak+ 5mm DRS Wheel Adapter – 4x100 Bolt Pattern, 54.1mm Center Bore, 12x1.5 Stud Thread - Wheel Spacers & Adapters - H&R at Garage 56 Engineering

H&R

H&R TRAK+ 5mm DRS Wheel Spacers (Pair) - NA/NB Miata (90-05)

$99.95 $89.96
Product Details

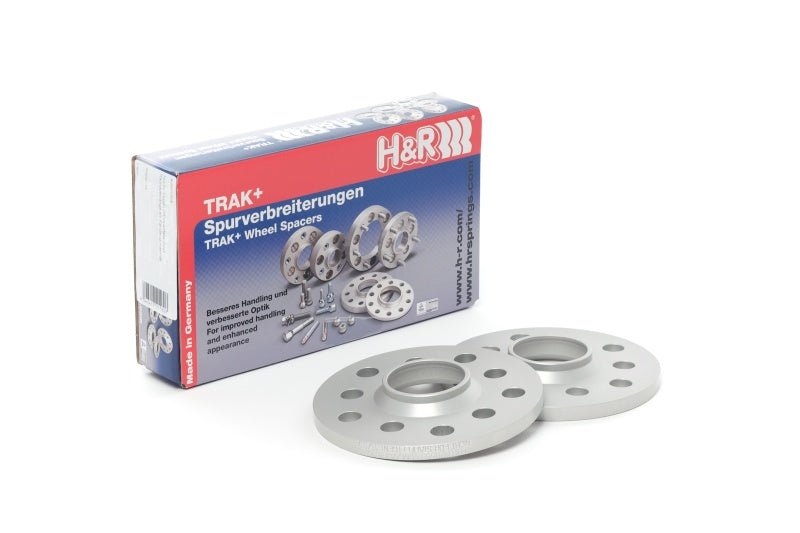

H&R TRAK+ DRS wheel spacers, 5 mm thick, for the 1990-1997 Mazda Miata (NA) and 1999-2005 Miata (NB). They fit between the wheel and the hub and keep the car's 4/100 bolt pattern. Sold as a pair.

  • Thickness: 5 mm per spacer; sold as a pair (two spacers)
  • DRS type: fits between the wheel and hub and requires exchanging the existing wheel studs for longer ones (studs are included)
  • Bolt pattern 4/100, center bore 54.1 mm, stud thread 12x1.5
  • Hubcentric with full-contact hub mounting
  • Made from H&R's proprietary alloy, which H&R describes as lighter and higher in tensile strength than 6061-T6 billet aluminum

Fitment: 1990-1997 Mazda Miata (NA) and 1999-2005 Mazda Miata (NB). Not for the 2006-2015 MX-5 (NC), which uses a 5/114.3 bolt pattern, and not listed by H&R for the 2016+ MX-5 (ND). H&R supplies these spacers with d=13.00 mm stud shoulders. H&R notes that Mazda stud shoulder diameters vary by axle and year: NA front 13.00 mm; NA rear 13.00 mm up to chassis no. 133232, then 14.85 mm; NB front 13.00 mm, NB rear 14.85 mm. For d=14.85 mm, H&R adds a "1" to the end of the part number. H&R also notes the DRS installation information must be followed carefully. H&R notes these are hub-centric flat disc type spacers that require the factory hub to center the wheels; measure the hub to verify enough height remains to center the wheel with the spacer fitted.

Part number: H&R 10245410

This Part Fits:

Year Make Model Submodel
1990-1997 Mazda Miata All
1999-2005 Mazda Miata All
