Product Details

The Radium Engineering Fluid Lock Catch Can Kit is a single oil catch can for the 1990-2005 Mazda Miata (NA and NB). It collects oil and water condensed from crankcase gases before they reach the intake, and can be plumbed into either the PCV line or the crankcase vent (valve cover breather) line. The can mounts on the left-side strut tower, near the exhaust manifold, using OEM holes.

  • Radium Fluid Lock can: 10AN ORB inlet and outlet ports, 4AN ORB drain port, two-stage oil separation baffling, 7 fl oz capacity
  • Patented Fluid Lock system holds collected fluid until the can is emptied and prevents overfilling; O-ring-sealed dipstick for checking the level
  • Fits either line: PCV (intake manifold barb to can side port, PCV valve to can top port) or crankcase vent (valve cover barb to top port, intake pipe barb to side port)

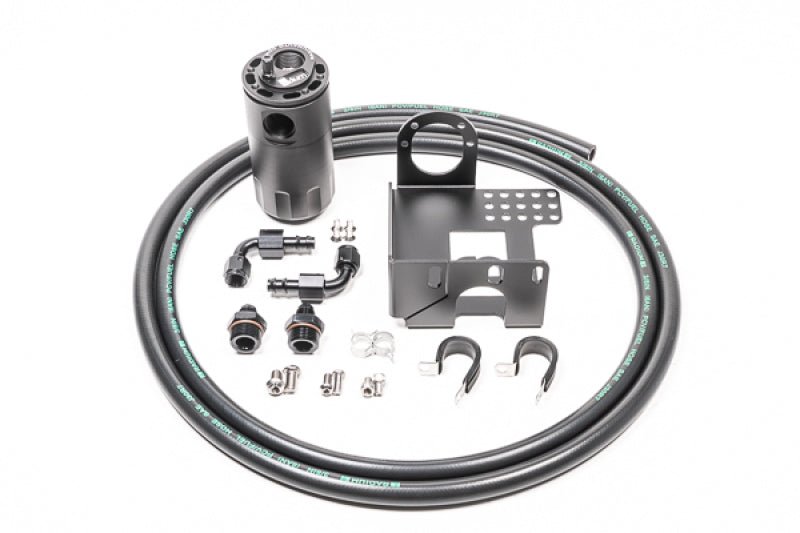

  • Kit contents: Fluid Lock can, anodized aluminum bracket, 3/8 in PCV hose, two 10AN ORB to 6AN male fittings, two Push-Lok hose ends and mounting hardware
  • Direct fit with no drilling; NA and NB use different bracket bolts (M6 for NA, M8 for NB) and both are included

Fitment: 1990-1997 Mazda Miata (NA, 1.6L and 1.8L) and 1999-2005 Mazda Miata (NB), left-hand drive. The OEM air box cannot be used with this kit; an aftermarket intake must be fitted first.

Part number: Radium Engineering 20-0336-FL

This Part Fits:

Year Make Model Submodel
1990-1997 Mazda Miata All
1999-2005 Mazda Miata All
